SH7-2212B
고성능 연산을 넘어선 비즈니스 확장성
SH7-2212B는 범용 연산 환경에 폭넓게 적용될 수 있으며, 고성능 컴퓨팅(HPC), 인공지능(AI), 클라우드 데스크탑 등 다양한 시나리오에 최적화되어 있습니다. 인터넷, 통신사, 기업, 정부 등 다양한 산업의 대표적인 응용 환경에 적합하며, 높은 연산 성능, 대용량 스토리지, 낮은 전력 소비, 우수한 확장성 및 높은 신뢰성을 특징으로 하여, 관리와 배포가 용이합니다.

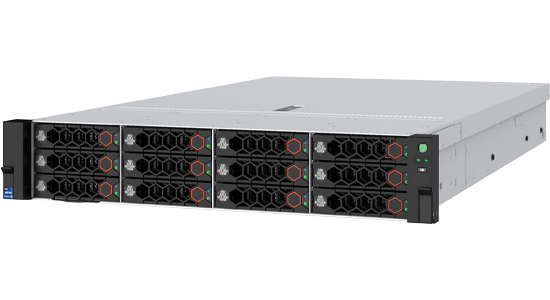

제품사진
제품상세
| CPU | 2 Intel® Xeon® 6 pocessors 144 Cores for each processor and 350W power consumption |
||
|---|---|---|---|
| Memory | 32 DDR5 RDIMM Slots, 6400 MT/s Data Rate, 8TB on 2 CPU Configuration 16 DDR5 MRDIMM Slots, 8000MT/s Data Rate Additional Expansion of 24 Memory Slots via CXL* |
||
| Raid Controller | Support RAID 0/1/5/6/10/50/60, etc., 8GB cache, support Supercapacitor Protection | ||
| Storage | 29 SAS/SATA Drives Front 12 LFF bays, Rear 4 LFF bays Front 25 SFF bays, Rear 4 SFF bays 24 U.2 NVMe Drives, 36 E3.S (1T) or 24 E3.S(2T) SSDs SATA/NVMe M.2 Kit, DSD Model (2×SD card kit) |
||
| Network | 1 Onboard 1 Gbps Management Network Port 2 Onboard OCP 3.0 NICs, support Hot Swap and PCIe 5.0 PCIe Standard Slots for Ethernet/IB Adapter |
||
| Expansion Slots | 14 PCIe5.0 Standard Slots*, 2 OCP 3.0 Slots and 1 Dedicated Mezz Slot, support CXL 2.0 | ||
| Ports | Standard: 1 Rear VGA Port, 4 USB Ports (1 Front, 2 Rear, 1 Internal) Optional: Mounting Bracket Kit with 1 front Serial port, 1 VGA port, 1 USB Port; 1 Front Management Port* |
||
| GPU | 4 Dual-Slot or 12 Single-Slot* GPU Modules | ||
| Management | HDM, ESLIM FIST Support LCD Touchable Intelligent Management Module |
||
| Security | Intelligent Front Security Bezel Chassis Intrusion Detection TPM 2.0 Intel SGX2.0 |
||
| Power supply | 1+1 Redundancy Power Supply Titanium 1600W/3200W Platinum 800W/1300W/1600W/2000W/2700W DC Power Supply Hot Swappable Redundant Fans |
||
| Dimensions (H × W × D) | 2U Regular Chassis: 87.5×445.4×800mm (3.44×17.54×31.5 in) (Without a security bezel) 87.5×445.4×828mm (3.44×17.54×32.6 in) (With a security bezel) 2U Extended Chassis*: 87.5×445.4×900mm (3.44×17.54×35.4 in) (Without a security bezel) 87.5×445.4×928mm (3.44×17.54×36.5 in) (With a security bezel) |
||
